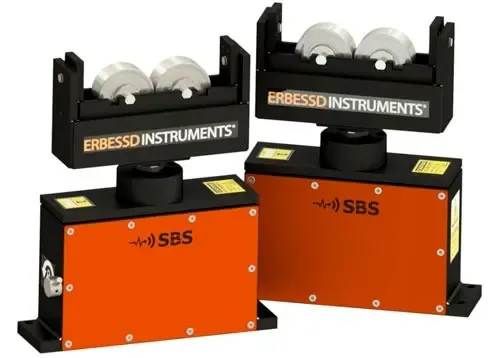

SBS 2000 | Technical Specs

SBS2000 dimensions
Max Load 2,000 kg (4,400 lb) Pair /
1,000 kg (2,200 lb) Each
Dimensions (L x W x H)331 x 89  x 356 mm
(13 x 3.75 x 14 in)
Weight46 kg (101 lb) /Unit
Max Axial Load76.5 N (16.53 lbf)
Min Bearing Surface contact36.5 mm (1.437 in)
Max Radial Displacement30 mm (1.18 in)
Max Shaft Diameter in supports238 mm (9.3 in)
Lock systemYes
Elevation Screw38 mm (1.5 in)
AcceleromerOptional



Accesories & Spare Parts
Increase performace of your SBS-2000 with optional accessories and spares.
DigivibeMX Kit
DigivibeMX is the family of devices that allows you to perform vibration analisis and dynamic balancing (depending of the DigivibeMX version) with more functions in the market. From simple Vibration analysis to complex 3D ODS vibration simulations. Read more about DigivibeMX family.
Negative Load Support
Carga Negativa SBS1000

It’s an accessory for SBS required when balancing rotors are mounted on cantilever and/or to secure rotors with high levels of vibration, like crankshafts. Each support includes bearings and has adjustable height. Its dimensions may vary depending on the bearing suspensions.

Accelerometer
ICP Accelerometers

Including magnetic base.

Set of Pulleys
Set of Pulleys for SBS1000
