Wireless Triaxial Accelerometer
What is a Wireless Triaxial Accelerometer?
A wireless triaxial accelerometer is a device that converts motion or vibration into a voltage signal which is then transmitted to a receiver using a wireless protocol. Wireless accelerometers are used in industry to avoid the usage of cables which can be expensive or difficult to install.
Our triaxial wireless accelerometer is a vibration sensor specially designed for vibration analysis with universal compatibility in mind. WiSER 3x is a Wi-Fi accelerometer that sends 3 axis vibration data + 1 additional channel simultaneously to any data collector on the market. Also, WiSER 3x is a wireless ultra-low noise triaxial accelerometer with 10 kHz bandwidth that exceeds the characteristics of most conventional accelerometers.

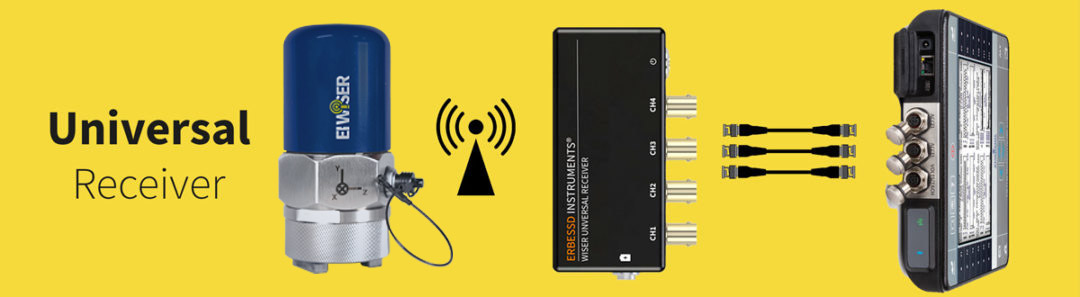

Use WiSER 3x on your own system… The wireless triaxial accelerometer universal receiver is specially designed to connect to any vibration analysis equipment on the market to our wireless accelerometer. Therefore, This is the #1 choice for wireless conversion of your system.
Real-time Vibration Streaming
Our 3 axis accelerometer sends data in real-time with a maximum delay of 0.2 seconds. Thus, allowing more than 1 million lines of resolution as well as recordings of several hours continuously if needed.

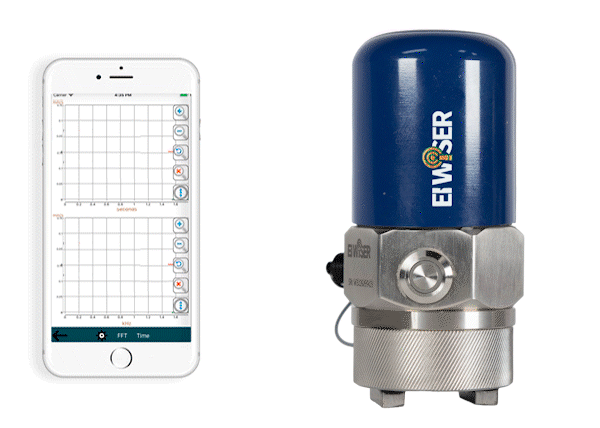

A Wireless Triaxial Accelerometer Compatible with your Cellphone!
Use your cellphone as a vibration analyzer: Our triaxial wireless sensor is able to connect to iOS and Android devices. You can take recordings and perform simple FFT analysis on 4 simultaneous channels with our vibration analysis app WiSER Vibe. Furthermore, connect your WiSER 3x directly via Wi-Fi, it requires NO receiver!
Download WiSER Vibe for free
WiSER 3X Mini
Learn more about the most portable wireless accelerometers in the market. Vibration analysis just in the palm of your hand.
Fast Data Collection Mode
WiSER 3x will measure acceleration, speed, displacement and envelope of acceleration in a single recording. No need for independent captures.
Additionally, the power button is also used to start or stop a capture. As a result, you will not lose time having to release the accelerometer every time you record a new point. This is especially useful when collecting routes.
Anywhere, Anytime… Share Your Data
You have the freedom to manage your data. Feel free to share your measurements through the cloud on EIAnalytic.com or by email, granting a deeper level of analysis experience with DigivibeMX.

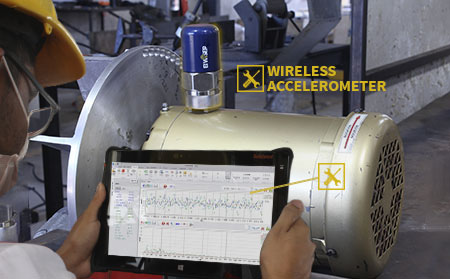

Portable Wireless Triaxial Accelerometer
Just place it and go! First, take your wireless sensor and place it at the measuring point. Then press the button to start a measure. With this in mind you will get multiple measurements in just few seconds!
Multi-platform Wireless Triaxial Accelerometer
Everything you need, anywhere you need it. tablet, laptop, or mobile… You choose the part form. Use WiSER 3x with DigivibeMX software.

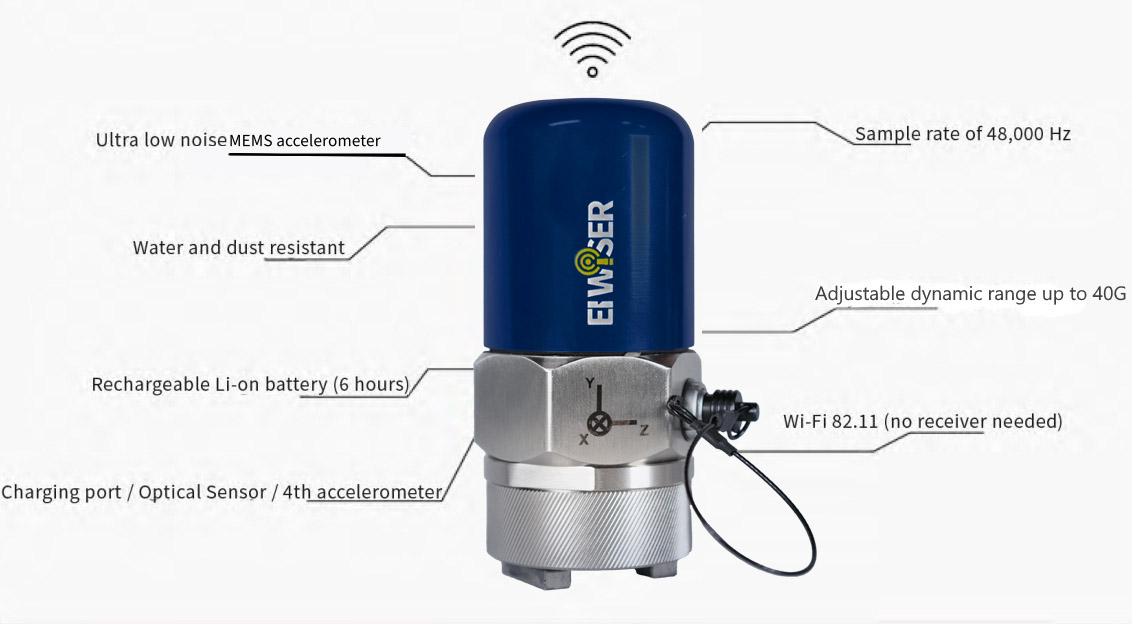

Key Features
- Compatible with any data collector device
- Full bandwidth 10kHz
- Long distance range up to 20m
- Stainless steel housing
- Operation temperature up to 185ºF (80ºC)
- Stand-by Mode
