Balancing Machines

Overview

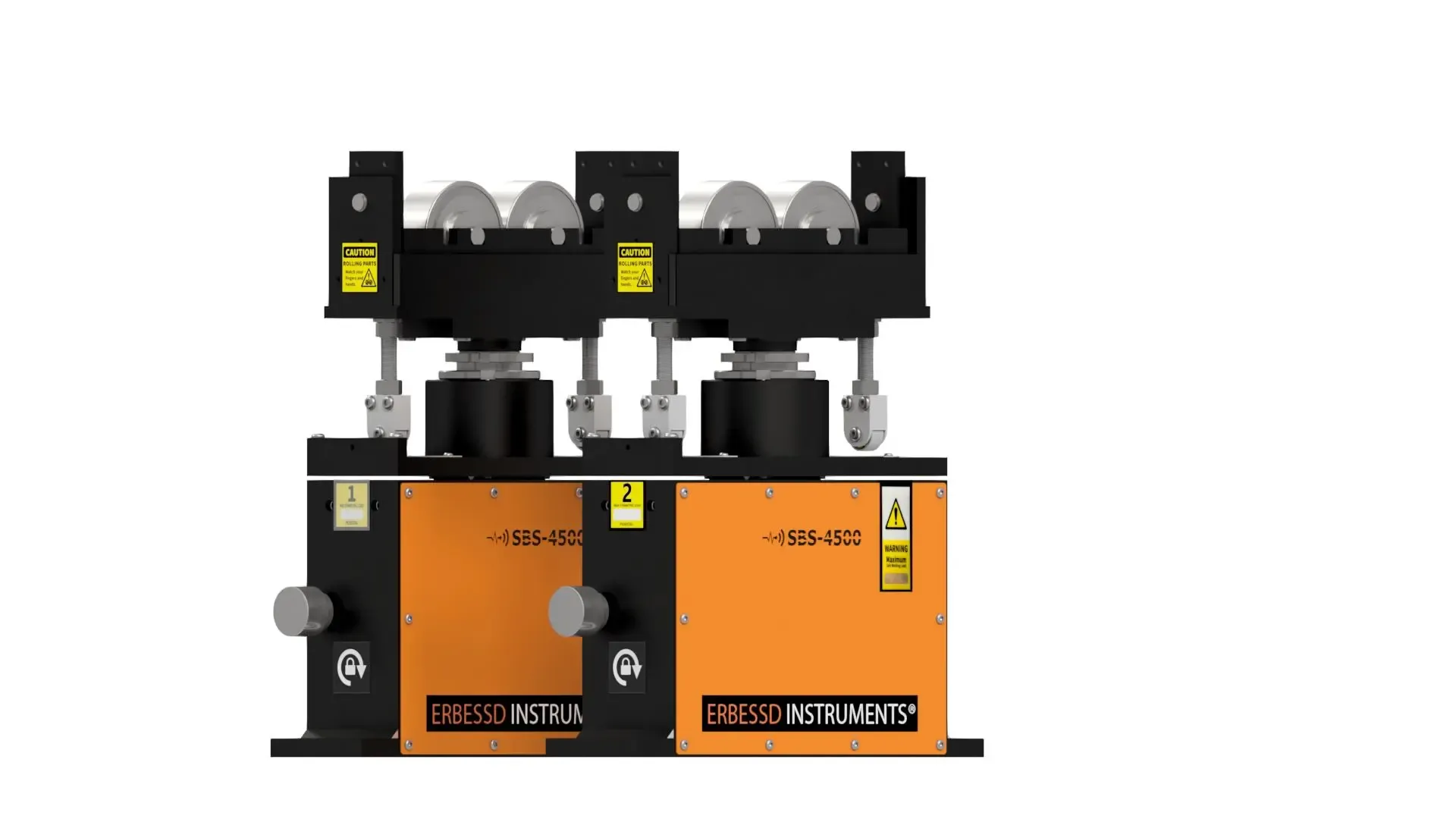

EI-4500 incorporates two Soft Bearing Suspensions supporting up to 2250 kg each. The SBS mechanism minimises friction and mechanical losses, letting the rotor spin around its centre of gravity instead of its geometric centre — high precision on virtually any rotating part, at speeds above the suspension’s resonance frequency.

Each machine ships with Digivibe MX® software and the GX-400 4-channel interface (2 accelerometers + 1 tachometer), built for both novice operators and demanding production environments.

Main features

• Max / min symmetrical load: 2250 kg / 100 kg per base
• Max rotor diameter: 1800 mm (71 in)
• Max journal diameter: 280 mm (11 in)
• Distance between supports: 200 mm - 2250 mm
• Precision: ±0.01 mm/s
• ISO 2953: 95 %
• Balancing in 1 or 2 planes without trial weights
• Variable speed with inverter; adjustable pulleys
• 3 liberty axes per pedestal
• Sealed sensors and auto-aligned slices
• Motor: 2.24 kW (3 hp), 220 / 440 V, 3-phase
