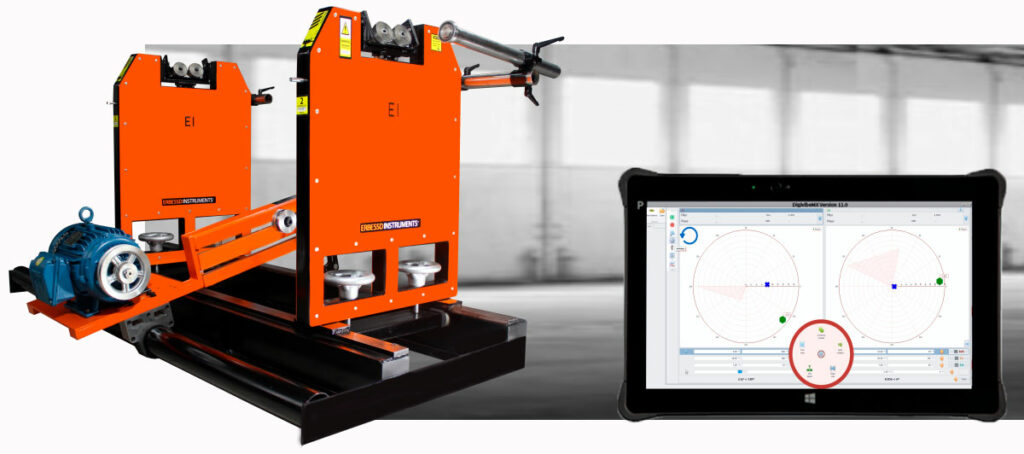

Dynamic Balancing Machine – EI-300

Ideal for almost all kinds of rotating parts up to 300 kg such as rolls, motor’s shafts, blowers, crankshafts, mills…

Features

EI-300 uses light and resistant materials for the SBS System in order to reduce inertia.

  • null
    Single and two plane balancing.
  • null
    Variable speed with an inverter.
  • null
    Adjustable pulleys.
  • null
    Three liberty axis for each pedestal to allow free movement.
  • null
    Manual adjust for power transmission and supports distance.
  • null
    Bearing based soft bearing suspension system to avoid mechanical looseness.
  • null
    Axial support system.
  • null
    Sensors integrated to avoid corrosion.
  • null
    Cantilever Bearing support.
  • null
    Easy calibration.
Balancing-Machine-300kg
EI300 SBS Systems

Equiped with Soft Bearing Suspension System

The Soft Bearing Suspension System (SBS) is designed to allow free radial displacement. The SBS minimizes friction and mechanical losses among its aluminum components.

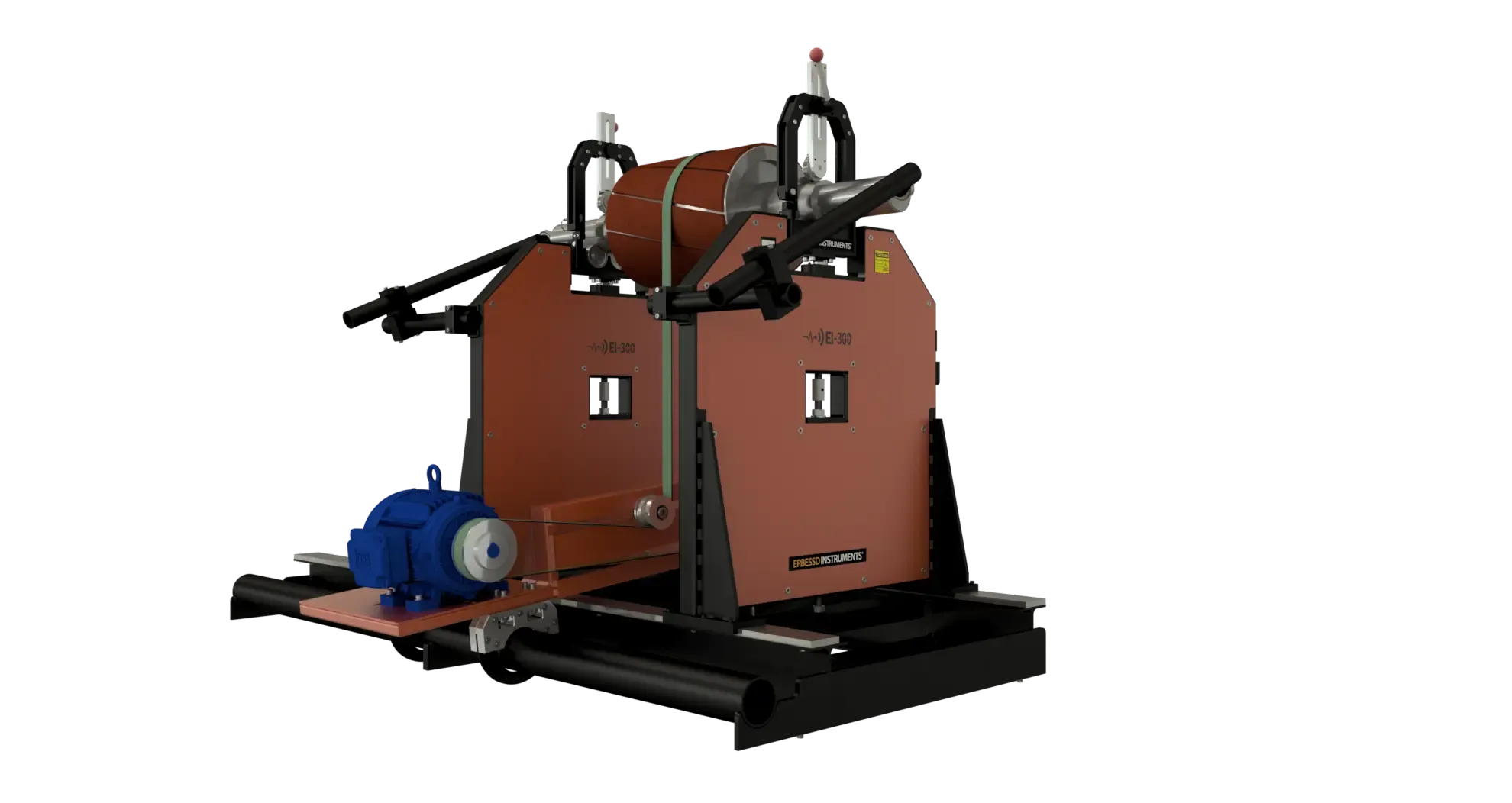

EI-300 Balancing Machine incorporates two suspensions that support up to 300 kg (150 kg each). The SBS mechanism improves balancing with the highest precision on almost any kind of rotating part. With this system, all balancings will be performed at higher frequencies and allows the rotor to spin around its center of gravity instead of its geometric center.

DigivibeMX® M10 included

DigivibeMX M10 is an easy-to-use kit1 that fits perfectly with the EI-300 Balancing Machine, so you can perform balancing in one or two planes.

Kit Software DigivibeMX M10

Technical Data
