Condition Monitoring Sensors
Phantom Condition Monitoring Sensors are small devices created to record vibration and send it to the cloud or to a local database using an intermediary device called “gateway”.
These Vibration Sensors make possible to monitor the condition of your machine very easily. The facility in mounting them and the lack of cables make them ideal for quick and cost-effective installations. Phantom Wireless vibration sensors send Waveforms and Spectra, reaching a bandwidth of 10 kHz and 6400 lines of resolution.
To save battery, Phantom® sensors also send RMS values in velocity (internal integration) and have an internal alarm that users can remotely program to wake up in case of high vibration.
Security
The signal from the Phantom sensors is encrypted which ensures the reliability of the information and the security of your data.
Condition Monitoring Sensors – Transmit Spectra Wirelessly
Phantom Condition Monitoring Sensors are capable of sending FFT Spectra and waveforms through BLE 5.0 wireless protocol. In return, they consume very little energy and achieve distances of up to 100 meters in line of sight or 50 meters with intermediate walls (these distances depend on the thickness of the walls)
Phantom Condition Monitoring sensors have a bandwidth of 10 kHz and Amplitude Range of + – 8G configurable to up to + -32 G. Excellent for detailed vibration analysis. Additionally, spectrum interval is also adjustable. In order to save battery, configure your wireless vibration sensors to send data in intervals ranging from every 10 to every 1440 minutes (24 h).
Wake up your Condition Monitoring Sensors with high vibration / Internal integration
Our wireless condition monitoring sensors for vibration spend asleep 95% of the time in order to extend their battery life. However, they have an internal processor capable of measuring the vibration every 30 seconds and integrating it to assess whether it is outside the configurable permissible limits. In case of finding vibration values above the threshold, Phantom will wake up and immediately and send an alarm signal to the cloud that can also reach your mobile phone if you wish.
Once the alarm has been sent, Phantom will not send another alarm unless it detects a vibration value greater than 25% of the previous alarm valueC

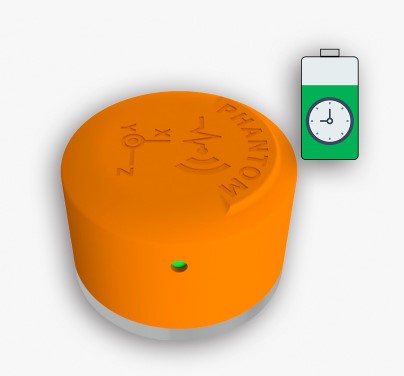

Condition Monitoring Sensors with Great Battery life
The battery is designed to last to take up to 100,000 measurements depending on the use, working temperature and distance between the sensor and the Gateway. The battery is totally replaceable, extending the life of the sensor protecting your investment.
Condition Monitoring Sensors – Designed for exterior and interiors
Our wireless condition monitoring sensors resist exposure to sun and rain. In fact, they comply with the IP67 standard. Furthermore, they are also very easy to install, through their rubbed 1/4 – 28 UNF. Just fix the base plate to the machine with epoxy glue and the vibration sensor will be screwed to it.
Integrated Temperature
Our wireless condition monitoring sensors include an internal temperature meter that will serve 2 purposes. Bring information to the temperature trending of the machine and Alert when the machine is outside the configured levels. It will also send an alert if the sensor detects that it is in danger because of the temperature.
The sensor has an operating range of -10º C to 85º C and the range can be extended with appropriate thermal insulators.
Meet the variety of the Phantom family
Wireless Vibration Sensor
EPH-V11 | Triaxial Vibration Sensor-
10kHz Fmax
-
Full waveform and Spectrum data
-
Prgammable Internal RMS trigger
-
Sample rato: 25600 Hz
-
6400 Resolution lines
-
Up to 100,000 meassurements
-
Configurable Alarrm value
-
IP67 protection grade
Wireless Vibration Sensor
EPH-ATX15 & ATX16 | Erbessd Triaxial Vibration Sensor-
-
ATEX Class II Grade
-
10kHz FMax
-
Full waveform and spectrum data
-
Programmable Internal RMS Trigger
-
Sample Rate: 25600 Hz
-
Resolution Lines: 6400
-
Up to 12,000 measurements
-
Internal temperature sensor
Wireless Universal Sensor
EPH-MT | Erbessd Vibration, Current and Temperature-
-
10kHz FMax
-
Full waveform and spectrum data
-
Resolution Lines: 6400
-
Measures 3-Phase curent simultaneusly
-
Compatible AC Split-core Clamps (50A, 100A, 250A, 500A)v
-
2 Temperatures Channels
-
Range of -210°C to 1800°C
-
Connect any type of Thermocouple
Wireless Speed Sensor
EPH-S40 | Erbessd RPM Hall effect Sensor-
-
Switching Speed up to 600,000 RPM
-
Speed + Vibration sensor integration
-
Standby mode and long battery life
-
Configurable Measurement Interval
-
Configurable Alarm value
-
2 Replaceable LiON AAA bateries
-
IP67 Protection
Wireless Current Sensor
EPH-C31 | Erbessd 4-Phase Current Sensor-
-
Measures 4-Phase current simultaneously
-
Sends every 5min the max. value of a 15s reading
-
Compatible AC Split-core Clamps (50A, 100A, 250A, 500A)
-
Configurable Alarm value
-
Standby mode and long battery life
-
2 Replaceable LiON AAA bateries
-
IP67 Protection
Wireless 4-20mA Sensor
EPH-G61 | Erbessd General Purpose 4-20mA sensor-
-
Measures 4 Channels simultaneously
-
Compatible with any 4-20mA sensor output
-
Very Easy to install
-
Configurable Alarm value
-
Standby mode and long battery life
-
IP67 protection
Wireless Temperature Sensor
EPH-T25 | Erbessd Thermocouple sensor-
-
Range of -210° to 1800° C
-
Measures temperature for object and ambient
-
Connect any type of Thermocouple
-
Configurable Alarm value
-
Standby mode and long battery life
-
IP67 Protection
-
2 Replaceable LiON AAA bateries
Wireless Temperature Sensor
EPH-T20 | Erbessd Infrarred Sensor-
-
Measures temperature for object and ambient
-
Measure Range from -70 to +380°C
-
Configurable Alarm value
-
Standby mode and long battery life
-
Configure your sensor using your mobile
-
IP67 Protection
Condition Monitoring Sensors application for Windows
Digivibe Vibration Analysis Application is compatible with all of our Phantom Condition Monitoring Sensors. Thus, Digivibe is able to connect to the cloud or to any local database to analyze the data sent by your Phantom sensors.
Digivibe is an application dedicated to the analysis of vibrations, trends, bearings and even 3D simulations. Additionally, with Digivibe you can configure all your sensors in a fast and intuitive way.
Mobile Application for Phantom Condition Monitoring Sensors
Wiser Vibe application handles Phantom condition monitoring sensors information as well as most of the information related to vibration analysis. You should use Wiser Vibe if you desire to:
Receive notifications of alarms on your cell phone when the vibration of your machines reduces the acceptable level.
Analyze the vibration spectra in your phone. You can view waveforms and spectra in all available parameter such as velocity, displacement or acceleration envelope in order to fully analyze your bearings or gearboxes.
Analyze the trends and statistics of your machines through graphics created specially to facilitate the detection of abnormal behavior.
Web Application for Phantom
We created EI-Analytic so that you can view your machinery without having to install any additional programs. Just Login and review your trends, statistics and spectra. Additionally, you are able to change the configurations from the site as well as checking battery life of all your condition monitoring sensors.
Developers can adapt Phantom sensors to their own systems through Phantom API. This way, you can have Phantom sensors adapted to your own platform and even connect them to third-party systems like Scada.
Interested in Real Time Wireless Accelerometers?
EI-WiSER
Wireless Accelerometer-
-
Monoaxial Accelerometer
-
Full bandwidth 15kHz
-
Ultra low-noise accelerometer
-
Long distance range up to 15m
-
IP67 Grade
-
Li-ion Rechargeable Battery
-
Ideal for Real Life ODS & Route Based Data Collection
WiSER 3x
Wireless Triaxial Accelerometer-
-
Triaxial Accelerometer
-
Full bandwidth 15kHz
-
Sensitivity of 100 mV/g
-
Long distance range up to 20m
-
Stainless steel housing
-
Operation temperature up to 185ºF (80ºC)
-
Ideal for Real Life ODS & Route Based Data Collection
WiSER 3X Mini
Wireless Triaxial Accelerometer-
-
High Range & High Sensitivity
-
MEMS type accelerometers (100 mV/g)
-
6400 Resolution Lines
-
3 Simultaneous Vibration Recording
-
Off & On Route Recording
-
Compatible only with WiSER Vibe app
-
50m DIstance Range
