What is a Vibration Monitoring System?

A vibration monitoring system is a set of tools used to measure one or more parameters to identify machine health changes. Monitoring these parameters help identifying early faults like imbalance, bearing faults, looseness, misalignment, and others. New Vibration Monitoring Systems using wireless transmission and long-life batteries are now replacing the industrial wired accelerometers all over the world.

Introducing our Vibration Monitoring System | Phantom™

Phantom™ is a Wireless Vibration Monitoring System that integrates other parameters such as temperature, current, speed, and general purpose values such as pressure, flow, and tank level into a single diagnosis system. Additionally, our sensors have an exceptional battery life of up to 100,000 measurements, and they are very easy to install. Equally important, Phantom™ can send data to a local database or to our cloud-based system, EI-Analytic. At any moment, you can track your machinery condition using any device such as a smartphone, computer, or tablet.

Why is Vibration Monitoring Important?

Phantom™ Vibration Monitoring Systems will help you to predict machine failures and save huge costs due to unscheduled production down times. For example, the following list are the most common failures that can be identified with our condition monitoring system:

  • Bearing Failure Stage I, II, III, and IV
  • Imbalance
  • Shaft and Bearing Wear
  • Mechanical Looseness
  • Misalignment
  • Electrical noise
  • Resonance
  • Among others…
phantom-accelerometer-wireless-temperature

Vibration Monitoring System Easy to Install

Wireless Technology in Vibration Monitoring has been developed in response to unmet needs of simplicity, for installation as well as industrial cabling requirements. With this in mind, our wireless sensors are very easy to install.

  1. Adhere the base to your machine
  2. Screw Phantom Wireless Sensor to the base
  3. Configure the software. It is as easy as that!

Finally, the connection of the sensors to the Gateway will be done automatically and securely without intervention.

Convierta su recolector de datos a INALÁMBRCO
Conozca WiSER 3x >

Wireless Vibration Monitoring System

Also, our vibration monitoring system uses ultra-low power BLE 5.0 technology. Therefore, our wireless sensors can achieve  up to 100,000 measurements without the need to change the battery.

Phantom™ technology is the most reliable online wireless machine health monitoring system on the market, providing distance ranges of up to 100 meters in line-of-sight. One of our clients even stated: “Phantom is the magic unicorn system we’ve been looking for.”

Phantom Installation

Convenience

Sometimes it is just too difficult to place sensors and wires all the way from a machine to a control room. Wireless sensors can be placed anywhere within the range.

Low Cost

If you have a PDA or a cellular phone, you easily understand why going wireless is much more cost-effective than wires. Cabling long distances can be quite expensive compared to wireless sensors.

Accessibility ​

Certain places on machines are simply not accessible with wires. Wireless Sensors might be a solution for that.

Security

The signal from the Phantom sensors is encrypted, which ensures your information reliability and data security.

 Modbus Universal Communication

Phantom™ Wireless Sensors now include Modbus TCP/IP which is a widely known and used universal communication protocol for industrial controls applications. Thus, making them compatible with any PLC, Scada system or any other Modbus TCP/IP communicating software. Applications:

  • Scada systems for control automation
  • PLC for machinery control and protection
  • ERP software such as SAP
  • Integration with self-designed applications with free APIs
  • Connecting wireless sensors
Modbus system
Are you interested in a Virtual DEMO?
Meet Phantom System, Learn about the most advanced Condition Monitoring features
Get your Free Demo

Meet the Phantom™ Vibration Monitoring Sensors:

Wireless Vibration Sensor

EPH-V11 | Triaxial Vibration Sensor
a $
  • 10kHz Fmax
  • Full waveform and Spectrum data
  • Prgammable Internal RMS trigger
  • Sample rato: 25600 Hz
  • 6400 Resolution lines
  • Up to 100,000 meassurements
  • Configurable Alarrm value
  • IP67 protection grade

Wireless Vibration Sensor

EPH-ATX15 & ATX16 | Erbessd Triaxial Vibration Sensor
a
  •
  • ATEX Class II Grade
  • 10kHz FMax
  • Full waveform and spectrum data
  • Programmable Internal RMS Trigger
  • Sample Rate: 25600 Hz
  • Resolution Lines: 6400
  • Up to 12,000 measurements
  • Internal temperature sensor

Wireless Voltimeter Sensor

EPH-G63 | General Purpose 0-10VDC sensor
a
  •
  • Measures 4 Channels simultaneously
  • Connect with any 0-10VDC sensor ouput
  • Very Easy to install
  • Configurable Alarm value
  • Standby mode and long battery life
  • IP67 protection

Wireless Digital Inputs Sensor

EPH-G62 | General Purpose Switch sensor
a
  •
  • Measures 4 Channels simultaneously
  • Colect 0 and 1 digital inputs
  • Very Easy to install
  • Standby mode and long battery life
  • IP67 protection

Wireless 2VDC Pk-Pk Sensor

EPH-G60 | General Purpose 2VDC Peak-Peak
a
  •
  • Measures 2 Channels simultaneously
  • Connect your accelerometer, proximeter or velocimeter
  • Very Easy to install
  • Configurable Alarm value
  • Standby mode and long battery life
  • IP67 protection
Phantom gen 2

Phantom™ G2 | Starter pack content

Phantom™ Vibration & Condition Monitoring kit includes the most powerful DigivibeMX® software version. You can choose between the following sensors:

  • Triaxial High Range Accelerometer
  • Triaxial High Sensitivity Accelerometer

Includes:

  • Software DigivibeMX® 11 Phantom™ version
  • 4 Phantom™ Wireless Triaxial Vibration sensors
  • 1 Gateway Phantom™ Receiver



Vibration Monitoring Online Cloud | EI-Analytic™

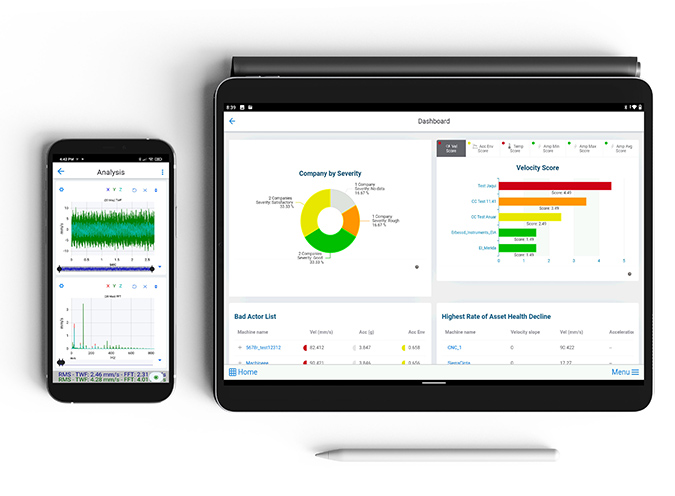

Finally, meet our cloud-based database EI-Analytic service for Phantom™ Vibration Monitoring System. It provides simple accessibility through a web-browser or mobile app. Additionally, our cloud allows direct connections from the DigivibeMX® software for data management, just as if the database was locally hosted.

No Software Costs

Moreover, our Vibration Monitoring System includes the powerful vibration analysis software DigivibeMX® Phantom™ without any limitation. In summary, with DigivibeMX®, you can perform a deep analysis on each spectrum and signal, as well as identify the tendency of vibrations.

Get your 1GB free EI-Analytic account now!
Manage your database from your cell phone, add machines, generate new routes, and more...
Free access

Automatic Learning

Another key point in the Phantom™ System are the powerful Machine learning models for your machinery vibration. During a period (configurable), Phantom™ will learn from the vibration of your machine to identify a “Normal” behavior.

machine learning models for vibration analysis
Vibration monitoring sensors installed on machines

QR Codes for your machines

Scan the machine QR code and immediately know its condition. If you walk through the plant or factory, and you wish to know the status of a machine, you only need to scan its code with your smartphone. Our WiSER™ Vibe Pro App will display all the information related to your machine. Truly simple monitoring system!

Support and Training

We know is important to realize custommer needs. Hence, Erbessd Instruments® offers free basic online support via telephone, Email and TeamViewer, as well as videos and tutorials which are constantly updated.

Open Databases

Per our philosophy “Databases belong to our clients” our databases are totally open. Consequently, you can access your database with any SQL or MySQL based software, giving you the option to link them to other softwares like Scada or CRM.

Security

The signal from the Phantom sensors is encrypted, which ensures the reliability of the information and the security of your data.

Are you a developer?

Use our vibration monitoring sensors on your own system. We offer APIs for developers to integrate Phantom ™ to their own framework. The architecture of Phantom’s APIs, will allow you to access an infinity of sensors and gateways in order to extract his data.

api para aplicaciones de desarrolladores

Explore Other Phantom™ Products:

Wireless Temperature Sensor

EPH-T25 | Erbessd Thermocouple sensor
a
  •
  • Range of -210° to 1800° C
  • Measures temperature for object and ambient
  • Connect any type of Thermocouple
  • Configurable Alarm value
  • Standby mode and long battery life
  • IP67 Protection
  • 2 Replaceable LiON AAA bateries

Wireless Current Sensor

EPH-C31 | Erbessd 4-Phase Current Sensor
a
  •
  • Measures 4-Phase current simultaneously
  • Sends every 5min the max. value of a 15s reading
  • Compatible AC Split-core Clamps (50A, 100A, 250A, 500A)
  • Configurable Alarm value
  • Standby mode and long battery life
  • 2 Replaceable LiON AAA bateries
  • IP67 Protection

Wireless Universal Sensor

EPH-MT | Erbessd Vibration, Current and Temperature
a
  •
  • 10kHz FMax
  • Full waveform and spectrum data
  • Resolution Lines: 6400
  • Measures 3-Phase curent simultaneusly
  • Compatible AC Split-core Clamps (50A, 100A, 250A, 500A)​v
  • 2 Temperatures Channels
  • Range of -210°C to 1800°C
  • Connect any type of Thermocouple

Wireless Temperature Sensor

EPH-T20 | Erbessd Infrarred Sensor
a
  •
  • Measures temperature for object and ambient
  • Measure Range from -70 to +380°C
  • Configurable Alarm value
  • Standby mode and long battery life
  • Configure your sensor using your mobile
  • IP67 Protection

Wireless Speed Sensor

EPH-S40 | Erbessd RPM Hall effect Sensor
a
  •
  • Switching Speed up to 600,000 RPM
  • Speed + Vibration sensor integration
  • Standby mode and long battery life
  • Configurable Measurement Interval
  • Configurable Alarm value
  • 2 Replaceable LiON AAA bateries
  • IP67 Protection

Wireless 4-20mA Sensor

EPH-G61 | Erbessd General Purpose 4-20mA sensor
a
  •
  • Measures 4 Channels simultaneously
  • Compatible with any 4-20mA sensor output
  • Very Easy to install
  • Configurable Alarm value
  • Standby mode and long battery life
  • IP67 protection
